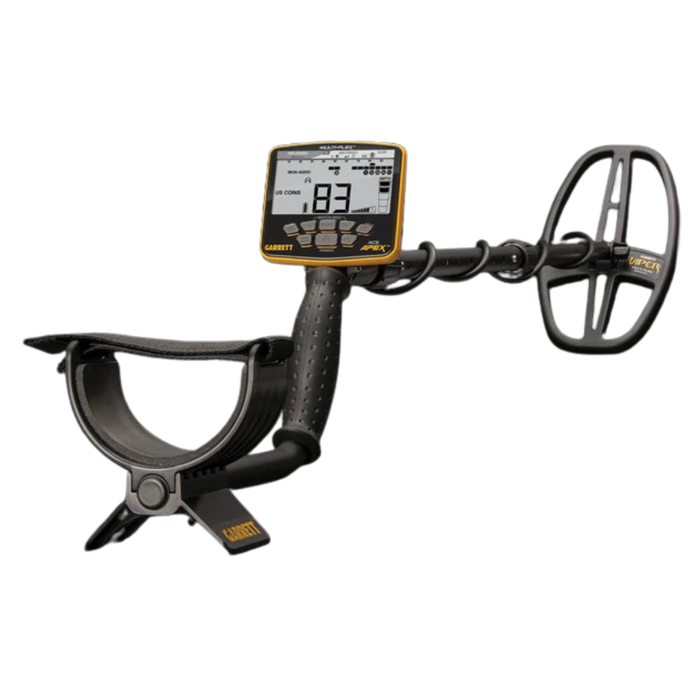

Garrett Ace APEX with Viper Coil

Garrett APEX Metal Detector – Ultimate Multi-Frequency Flexibility & Precision

Advanced Multi-Frequency Power at an Unbeatable Value

The Garrett APEX delivers unmatched versatility thanks to Garrett’s exclusive Multi-Flex™ technology, a cutting-edge broad-bandwidth digital platform that gives you more frequency options and better performance than any detector in its price range.

Whether you’re hunting coins, relics, jewellery, or beach targets, the APEX adapts instantly to different soils and targets—giving you total control and consistently excellent results.

APEX Frequency Options – Total Control

Choose the perfect frequency for your detecting style or environment:

• Single Frequencies: 5 kHz | 10 kHz | 15 kHz | 20 kHz

• Simultaneous Multi-Frequency

• Multi-Salt Mode for superior saltwater beach performance

Lower frequencies excel on larger, high-conductive targets like silver coins, while higher frequencies enhance detection of small, low-conductive targets such as hammered coins and gold nuggets.

Multi-Flex™ Technology – Complete Detecting Flexibility

Garrett’s Multi-Flex™ system allows you to:

• Optimise detection for specific targets using single frequencies

• Run true simultaneous multi-frequency for excellent depth and accuracy in all soil conditions

• Maintain stable operation on mineralised ground and wet sand

This level of adaptability is rarely found in detectors at this price point.

Iron Volume & Iron Audio – Control What You Hear

• Iron Volume Control:
  Reduce iron target volume while keeping non-ferrous targets clear and strong

• 8 Iron Volume Levels for maximum flexibility

• Iron Audio:
  Helps identify complex iron targets like bottle caps

Perfect for experienced detectorists who want full audio information without constant iron noise.

Detection Modes & User Controls

• 6 Detection Modes + Pinpoint:
  Zero, Coins, US Coins (with icons), Jewelry, Relics, Custom

• Direct-Drive Buttons for fast access to key controls

• Easy-to-navigate menu system

High-Resolution Ground Balance & Discrimination

• 175-Point Ground Balance Resolution
  From highly mineralised soil to saltwater beaches

• High-Resolution Notch Discrimination
  20 pixels total, including 8 iron segments

• Large, Clear Target ID Numbers

Advanced Audio & Display Features

• 5-Tone Audible Target ID

• Hybrid Audio System
  Combines simple binary audio with proportional audio for faint targets

• Backlit LCD Display

• Volume Control for speaker and headphones

• 8 Sensitivity / Depth Levels

Wireless, Rechargeable & Ready to Hunt

• Built-in Z-LYNK™ Wireless Technology
  Up to 6× faster than Bluetooth – hunt without cords

• 1/8” Headphone Jack for optional wired headphones

• Rechargeable Lithium-Ion Battery
  Up to 15 hours of detecting

• Mini-USB Charging Cable Included

New 6” × 11” DD Viper Search Coil

• Fully waterproof DD Viper coil

• Excellent coverage for open fields

• Narrow 6” footprint for superior separation in iron-infested sites

• Designed specifically to support Multi-Flex™ frequency technology

Note: Due to Multi-Flex coil technology, APEX coils are not compatible with older ACE detectors, and prior ACE coils cannot be used with the APEX.

Why Choose the Garrett APEX Metal Detector?

✔ Multi-Flex™ simultaneous multi-frequency technology
✔ Exceptional value and versatility
✔ Advanced iron control & audio features
✔ Wireless Z-LYNK™ audio system
✔ Excellent land & beach performance

The Garrett APEX metal detector delivers premium multi-frequency performance, advanced audio control, and wireless freedom—making it one of the most versatile and best-value detectors in its class.
