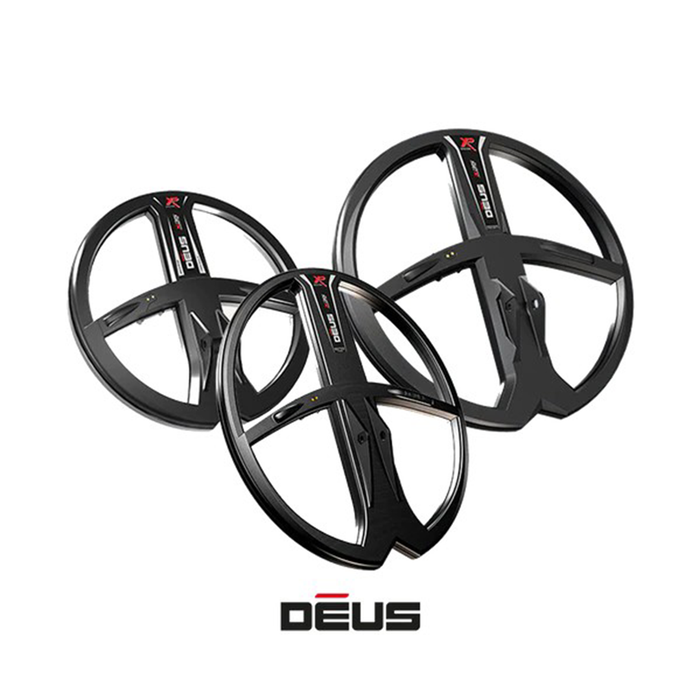

XP X35 Search Coils – Wide Frequency Performance for XP DEUS

The XP X35 Search Coils are high-performance, versatile coils designed around advanced electronics to deliver exceptional depth, sensitivity, and stability across a huge range of detecting conditions. Offering an impressive 35 selectable frequencies from 3.7 kHz to 27.7 kHz, X35 coils give detectorists the flexibility to optimise performance for everything from deep silver coins to tiny low-conductive targets.

Designed and manufactured by XP Metal Detectors, X35 coils are fully compatible with XP DEUS running software version 5, making them a powerful upgrade or replacement option for serious detectorists.

Wide Frequency Range & Advanced Control

The X35 coils are built around 5 main frequency ranges, each with 7 wide offsets, allowing fine tuning without sacrificing performance:

• 3.7 – 4.4 kHz

• 7.1 – 8.4 kHz

• 10.5 – 12.4 kHz

• 15.2 – 17.8 kHz

• 23.5 – 27.7 kHz

This wide frequency coverage makes the X35 coils suitable for coins, relics, jewellery, and small low-conductive targets across all soil types.

TX Boost Mode for Maximum Depth

A special TX Boost mode is available on low frequencies (3.7–4.4 kHz), significantly increasing detection depth on highly conductive targets such as large silver coins and hoards. When soil conditions allow, TX Boost delivers outstanding depth performance.

Note: TX Boost mode increases power consumption and can reduce coil battery life to approximately 6 hours.

Key Features & Benefits

• 35 selectable frequencies from 3.7–27.7 kHz

• 5 main frequency ranges with 7 offsets each

• Selectable frequency offset with no loss of performance

• TX power adjustment on all frequencies

• Low-frequency TX Boost mode for maximum depth

• Excellent sensitivity to small and low-conductive targets

• Improved overall stability

• 10%–40% improved battery life on most frequencies

• Designed for XP DEUS software version 5

Available Coil Sizes

• 22 cm (9") round

• 28 cm (11") round

• 34 × 28 cm (13" × 11") elliptical

Larger coils are recommended when using TX Boost mode for maximum depth on large, high-conductivity targets.

Compatibility

• XP DEUS (Version 5 software required)

Why Choose XP X35 Coils?

The XP X35 coils offer one of the widest frequency ranges available for the XP DEUS, giving detectorists ultimate flexibility, improved depth, and enhanced target separation. Whether you’re searching deep pasture, iron-infested sites, or chasing small low-conductive targets, X35 coils deliver professional-level performance across all environments.
