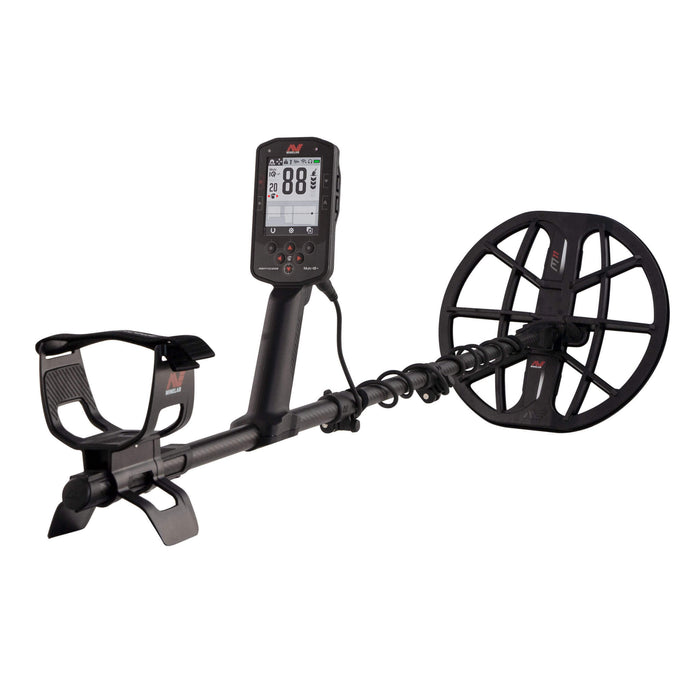

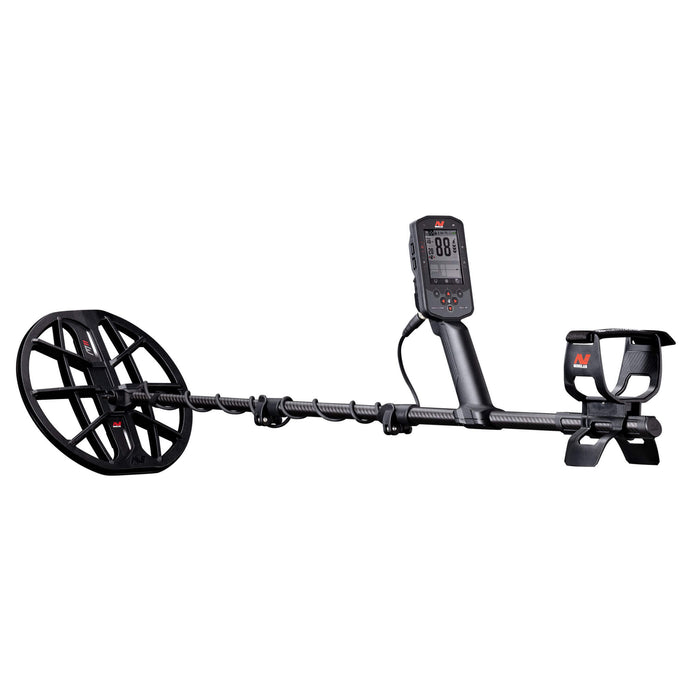

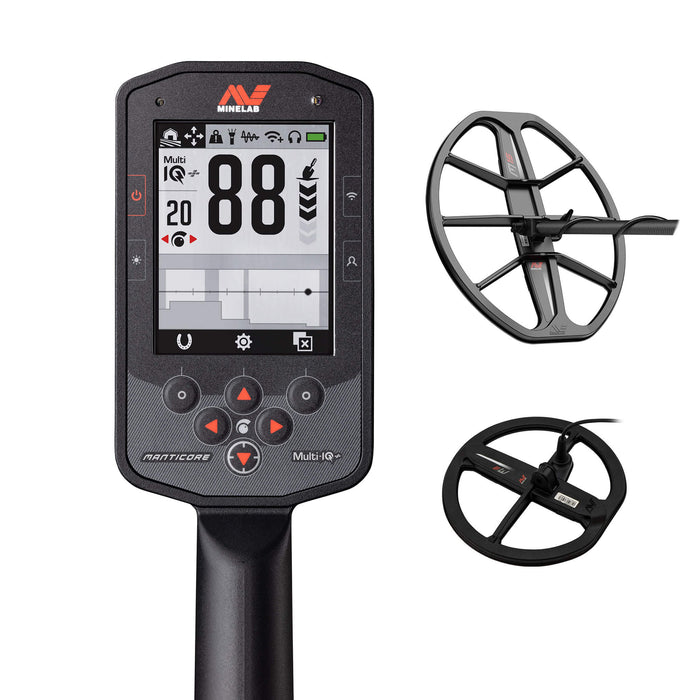

Metal detector with display and two search coils on a white background

Minelab Manticore Metal Detector and FREE Minelab M15 & M9 Coil

by Minelab
£1,799.00 - £1,799.00
£1,799.00
£1,799.00 - £1,799.00
£1,799.00

0% Interest Free Finance Available on orders over £250 - Click Here to Apply

Minelab Manticore Logo

Minelab Manticore is the most powerful, fastest, and most precise metal detector ever created by Minelab. At its core is the revolutionary Multi-IQ+ Simultaneous Multi-Frequency engine, delivering up to 50% more power than the industry-leading EQUINOX series. Combined with advanced 2D Target ID mapping and customizable audio controls, the MANTICORE gives you unmatched accuracy, target separation, and depth - all in one compact, waterproof machine.

Key Features

  • Multi-IQ+ Technology
    A next-generation multi-frequency system that transmits more power across a broader frequency range. Enhanced signal processing improves discrimination, Target ID resolution, and target separation.

  • 10 Custom Search Modes
    Including optimized modes for inland, beach, and goldfield detecting — tailored to match specific terrains.

  • Fast Target Separation
    Exceptional responsiveness allows you to detect valuable targets even in iron-contaminated areas.

  • Advanced Audio Controls
    Adjust target tones, ferrous tones, and threshold pitch with full control. EMI suppression and Continuous Pitch audio provide clear signals in noisy environments.

  • Waterproof to 5 m (16 ft)
    IP68 rated for underwater treasure hunting in rivers, lakes, and surf zones.

  • Night-Ready Interface
    Includes backlit display, illuminated keypad, flashlight, and vibration feedback for low-light detecting.

  • Lightweight & Compact

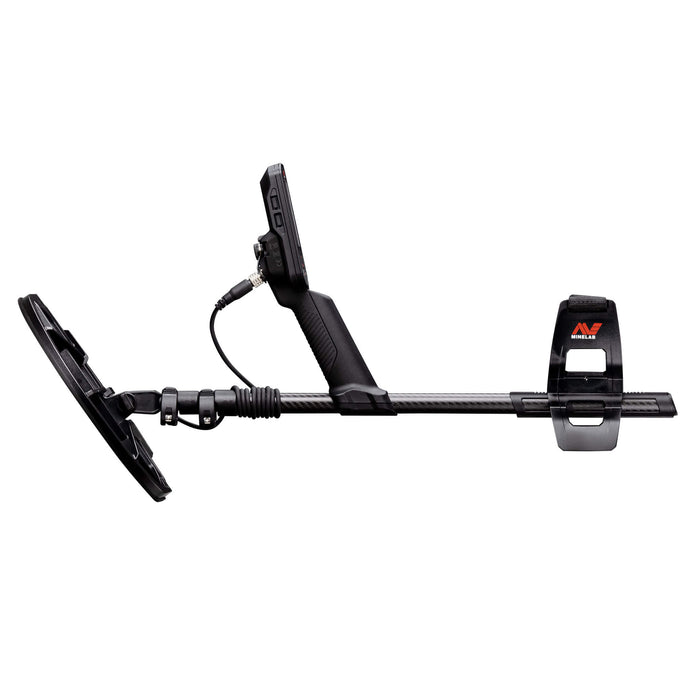

    Carbon-fibre shaft, collapses to 630 mm (24.8 in), extends to 1440 mm (56.7 in), and weighs only 1.3 kg (2.9 lbs).

  • Standard Coil
    M11 11" round Double-D waterproof coil with skid plate.

  • Wireless Audio
    Built-in speaker, 3.5 mm audio jack, and Minelab ML-105 low-latency wireless headphones (included).

Technical Specifications

Feature Details
Detect Modes Customizable: All-Terrain (5), Beach (4), Goldfield (1)
Operating Frequencies Multi-IQ+, 5, 10, 15, 20, 40 kHz
Noise Cancel Auto, Continuous Auto, Manual (-9 to +9)
Ground Balance Auto, Manual, Tracking
Sensitivity 1 to 35
Target Identification Conductive ID: 0–99 with ferrous indication
2D ID Map Target Trace with Two-Dimensional Mapping
Target Tones 1, 2, 5-Tone | Region All Tones
Target Volume 0 to 25
Target Pitch 1 to 50
Ferrous Volume / Pitch Volume: 0–25 | Pitch: 1–50
Audio Themes Normal, Enhanced, Continuous Pitch
Volume Profiles Simple, Medium, Rich
Threshold Level / Pitch Level: 0–25 | Pitch: 1–50
Recovery Speed 0 to 8
Ferrous Limits Upper: 0–14, Lower: 0–9 (Custom: 1–4)
Depth Indicator 5 Levels
Shaft System 3-piece collapsible carbon-fibre
Weight 1.3 kg (2.9 lbs)

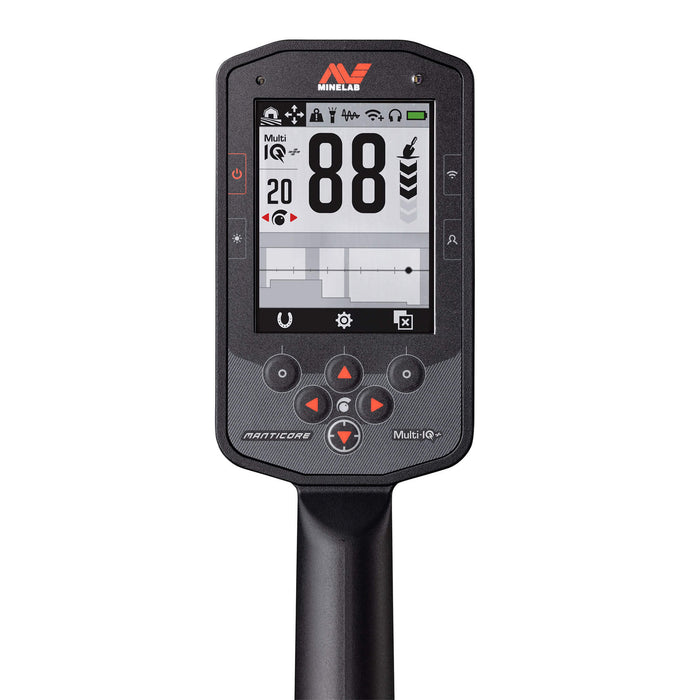

Display Full-color LCD
Backlight Manual (1–10), Auto Adjust
Keypad Backlight On / Off
Flashlight Low, Medium, High, Off
Handgrip Vibration On / Off
Battery Internal rechargeable lithium-ion
Battery Runtime Approx. 9 hours
Charge Time Approx. 7 hours
Waterproof Rating IP68 — up to 5 m (16 ft)
Included Accessories USB Charging Cable, Screen Protectors, Audio Cable, Headphone Case
Software Upgradable Yes — via USB (Windows/Mac)


What’s in the Box?

  • Minelab MANTICORE Multi-Frequency Metal Detector
  • M11 11" Round Double-D Smart Coil with Skid Plate
  • Bonus: M9 9" Round Double-D Smart Coil with Skid Plate
  • Bonus: M15 15" Elliptical Double-D Smart Coil with Skid Plate
  • ML-105 Low Latency Wireless Bluetooth Headphones with Built-in Mic
  • USB Charging Cable with Magnetic Connector
  • USB-C to USB-A Cable (for headphones charging)
  • Coil Mounting Hardware Kit
  • Getting Started Guide
