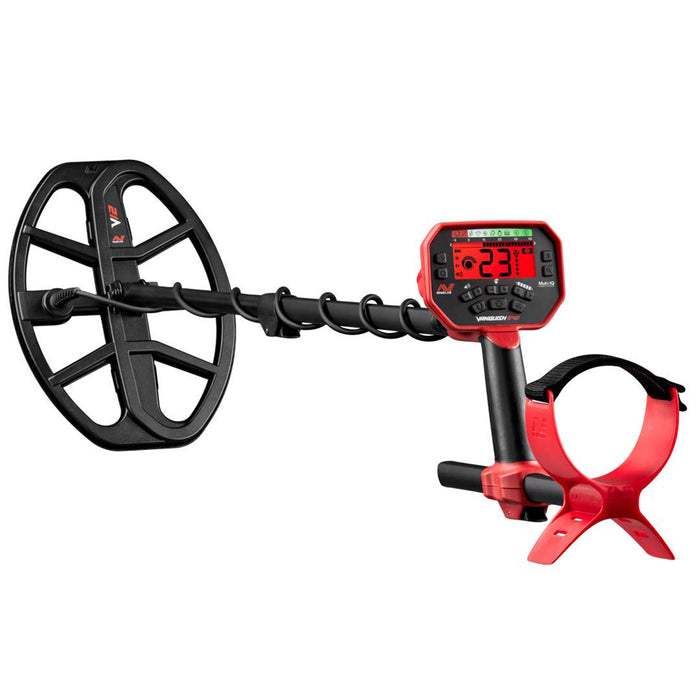

Minelab Vanquish 540 Metal Detector
0% Interest Free Finance Available on orders over £250 - Click Here to Apply
The Minelab VANQUISH 540 is engineered for serious detectorists who demand great performance across all terrains. Built with Multi-IQ® simultaneous multi-frequency technology, this advanced metal detector ensures you never miss a target whether you're combing through ancient farmland, coastal sand, or urban sites across the UK.
The VANQUISH 540 features full iron bias control, advanced audio settings, and a dedicated pinpoint mode for accurate target recovery. It also includes a bright red LED backlight for low-light conditions and comes equipped with rechargeable batteries, so you’re ready to detect from dawn till dusk.
What sets the VANQUISH 540 apart is its 12” waterproof V12 coil included as standard, offering greater depth and coverage with every sweep. Whether you're detecting in the fields of Yorkshire, the beaches of Devon, or historic woodland in Wales, the VANQUISH 540 delivers high-end performance at exceptional value.
Key Features
-
Multi-IQ® Technology
Detect multiple types of metal at once with simultaneous multi-frequency scanning for maximum results in all ground conditions.
-
5 Detect Modes
Choose from Coin, Relic, Jewellery, All Metal, or Pinpoint modes to suit your target and terrain.
-
Iron Bias Control
Toggle between High and Low settings to fine-tune iron discrimination in difficult environments.
-
Wireless Audio
Includes Bluetooth aptX™ Low Latency wireless audio for seamless, lag-free sound.
-

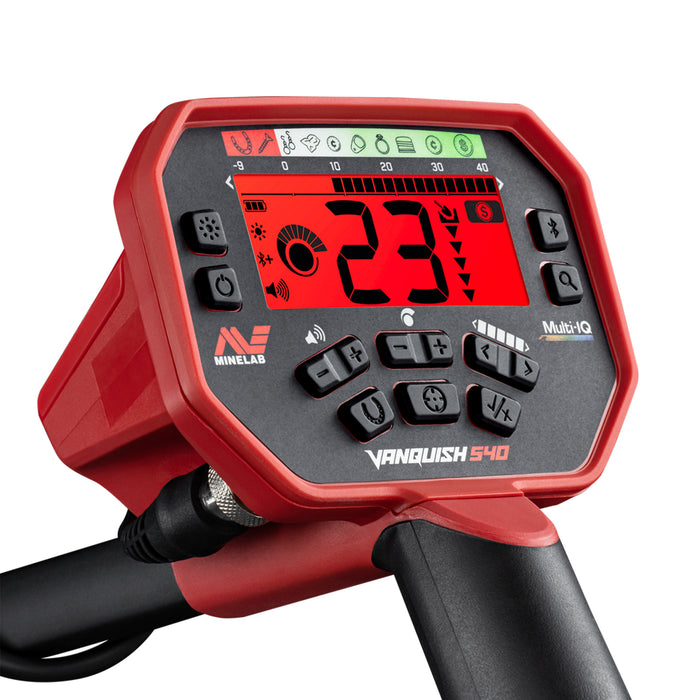

Backlight Display
Equipped with a red LED backlight for improved visibility in low-light conditions.
-
Dual-Coil Setup
Includes both V12 (12x9") and V8 (8x5") DD waterproof search coils for versatile detecting.
Technical Specifications
| Feature | Details |
|---|---|
| Detect Modes | Coin, Relic, Jewellery, All Metal, Pinpoint |
| Frequencies | Three: Low, Medium & High (Simultaneously) |
| Noise Cancel | Auto (19 Channels) |
| Iron Bias | High / Low |
| Sensitivity Levels | 10 |
| Volume Levels | 10 |
| Target Tones | 5 |
| Target ID Range | -9 to 40 |
| Discrimination Segments | 25 |
| Depth Indicator Levels | 5 |
| Audio Output | 3.5mm headphone jack, built-in speaker, Bluetooth wireless |
| Display | Backlight Mono LCD (Red LED) |
| Weight (with batteries) | 1.3kg (2.9lb) |
| Length (Extended) | 1450mm (57") |
| Length (Collapsed) | 760mm (30") |
| Waterproofing | Coil waterproof to 1m (3 feet) |
| Operating Temp Range | -10°C to 40°C |
| Storage Temp Range | -20°C to 70°C |
What’s in the Box?
- Minelab VANQUISH 540 Metal Detector
- V12 (12 x 9") DD Waterproof Search Coil
- Wired Headphones
- 4 x AA NiMH Rechargeable Batteries
- Control Box Cover
- Arm Strap
- Coil Cover
- Getting Started Guide
